The wizard presents a sequence that lead the user through well-defined steps.
Wizards are a powerful design pattern that can be used to simplify complex processes. By showing less information at a time, they allow users to focus better on the content. The steps can vary depending on the user's input.
Wizard light in a slide-out modal
Use a wizard when a user has to complete steps in a specific sequence, or when a complicated task needs to become simplified. Use the light version of wizard when you are designing a simple flow. A simple flow is typically two-three steps within a slide-out so that the user remains in the same context. If it needs to be more complex, use the full wizard.
Be specific on what information a user is required to supply at each step. Use the supporting content area to give hints on what is required or provide a short FAQ relevant to that step. Try to group related questions (i.e. personal information) in one step.
The light wizard is a simplified guide that uses the slide-out modal. It has a label with steps and buttons that navigates back and forward.
A grid is applied on the main and secondary content areas, whilst the step navigation is fixed at 320 px. The content is always left-aligned. Subtle animations are used to enhance actions in the step navigation.
The width of the main content area varies depending on screen size but it is never wider than 768 px. In some cases, for example when a wide table is needed, you have the possibility of using the whole content area.
Grid for desktop
Grid for tablet

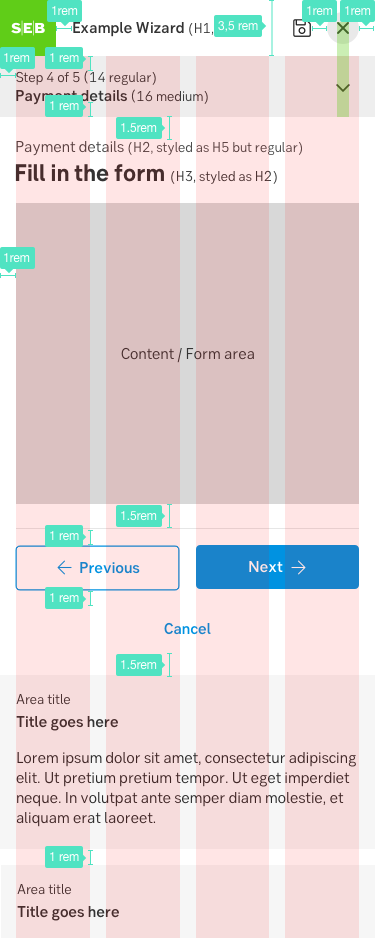

Grid for mobile
The Previous and Next buttons should be placed in their direction (previous - back, next - forward). The buttons contain an arrow icon placed centred aligned with the text in the direction.
Desktop step buttons can be sticky to the bottom of the browser (optional). The buttons are placed within the width of the main content area.
Mobile step buttons are not sticky and placed at the bottom of the main content area.

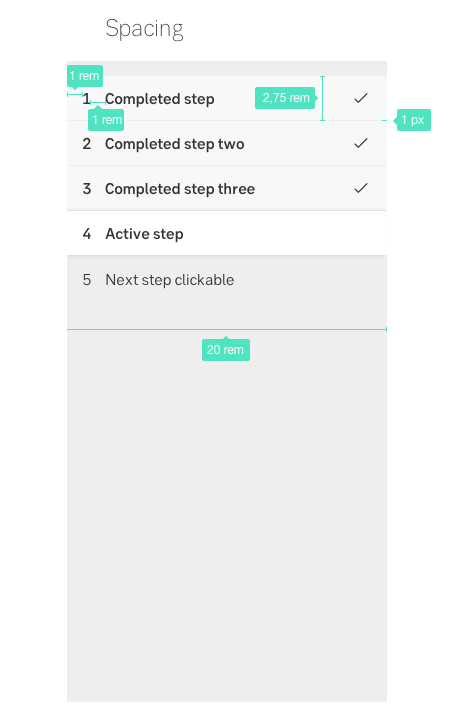

The step navigation has a fixed width on desktop and tablet landscape at 320 px. Mobile and tablet portrait navigation collapses and takes full width.
The icons that gives the user information when the step is fullfilled, or if an error occurs, is always placed to the very right. In mobile, icons are aligned with the close icon in the header.
States in navigation
The step navigations background colour is #eeeeee. The default steps are transparent which gives the active and completed steps more focus. A completed step is enhanced by a check icon in #333333. If an error occures, the step is enhanced with an exclemation mark icon in red.
Wizard - desktop
Step navigation - mobile
